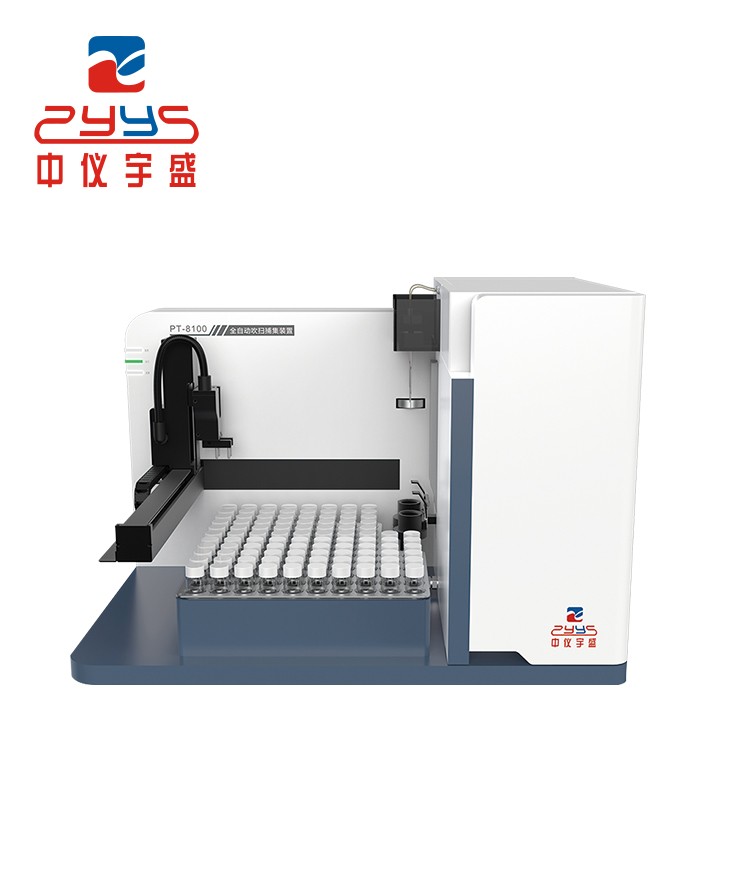

PURGE AND TRAP SERIES
Sample location：100
Product features:
※ The sample tray is equipped with 100 sample positions, which can be automatically operated without personnel on duty;
※ Optional sample tray cooling function to keep the sample at a low temperature to reduce the loss of volatile components in the sample;
※ Water and soil double needle design, independent channel of water and soil samples, cross-contamination between water and soil samples;
※ Automatic trap baking function, can independently run trap baking program, bake trap and system pipeline, remove system residue;
※ Automatic pipe cleaning function, can independently run pipe cleaning program, targeted cleaning;
※ Automatic trap desorption function, can independently run the trap desorption sampling procedure, convenient to check whether the trap is polluted;
※ Automatic water sample blank analysis, no need to occupy the sample bottle station;
※ Automatic preparation of calibration curve. Support automatic preparation of calibration curve, can be configured with 10 different concentration calibration curve points;
※ Modular integrated flow path design to reduce system dead volume;
※ When the sample is in different sections such as purge, dry blow or bake, the temperature and flow rate can be automatically set;
※ Fully enclosed gas and liquid path design ensures no loss of samples in the pretreatment stage;
※ Automatic dilution of samples can be realized;
※ Inert treated stainless steel pipe and PEEK pipe are used for gas pipeline.
※ Methanol extraction function, high concentration of soil samples automatic methanol extraction and dilution treatment;
※ The soil sample supports the stepless speed regulation magnetic stirring function, and the soil can be heated to 90°C;
※ PC software control, one-click operation, easy operation, comprehensive functions:
(1) With GC signal configuration function, the corresponding signal can be configured according to the actual situation of the host, without rewiring to adapt;
(2) It can establish, edit and save multiple sample methods and call them at any time, saving experiment time and improving analysis efficiency;
(3) It can grasp the current status of each sample and the operation of the instrument in real time;
(4) Support queue arbitrary editing operation, and can save a variety of queues, call at any time, save experiment time;
(5) With sample, warning, error log, can trace the whole process of the experiment, and automatically shut down in case of error, to ensure the safety of the instrument.
